SAM FPM 155 Seam Tape Fully Automatic Filling and Packaging Machine (1Kg-2Kg-5Kg)

SAM FPM 155 Seam Tape Fully Automatic Filling and Packing Machine takes and fills flat-bottomed ready-made paper packages automatically. The filled packages move towards the sewing machine on the band. Packages with handles, whose mouths are sewn, are then placed in the desired place by the employee.

  • Sensibility: The margin of error in the filling for 1kg is ± 0.5% (5 per thousand) and the working waste is below 2%.
  • Guarantee: It is guaranteed for 2 years in Türkiye and 1 year abroad.
  • Capacity: In 1 kg packaging: 38-40 bags/minute
    In 2 kg packaging: 24-26 bags/min
    In 5 kg packaging: 10-12 bags/min
  • Electric: It works with 380 V, 3 Phase, 50 HZ.
  • As a facility, it consists of a conveyor belt with a sewing machine, an inkjet printer and other parts upon request.

Technicial Specifications

  • * Fills 1Kg, 2Kg and 5Kg flat-bottom, ready-made paper packages.
    * All control is done from touch PLC screen.
    * There is automatic lubrication in the whole system.
    * There is a dust suction system on the filling system.
    * Depending on the type of product, there are 200 Kg or 50 Kg stainless silos.
    * Metal surfaces are coated against corrosion before painting.
    * Machine paint is durable static paint.
    * All surfaces in contact with the product to be packaged are stainless.
    * Metal surfaces are nickel plated and blackened, stainless.
    * There is a speed-adjustable vibration system.
    * Electrical materials: Schneider (France)
    * Pneumatic materials: Festo (Germany)
    * Vacuum holders and suction cups: Festo (Germany)
    * Gearboxes: Yılmaz Redüktör (Türkiye)
    * PLC control system: ABB (Switzerland)

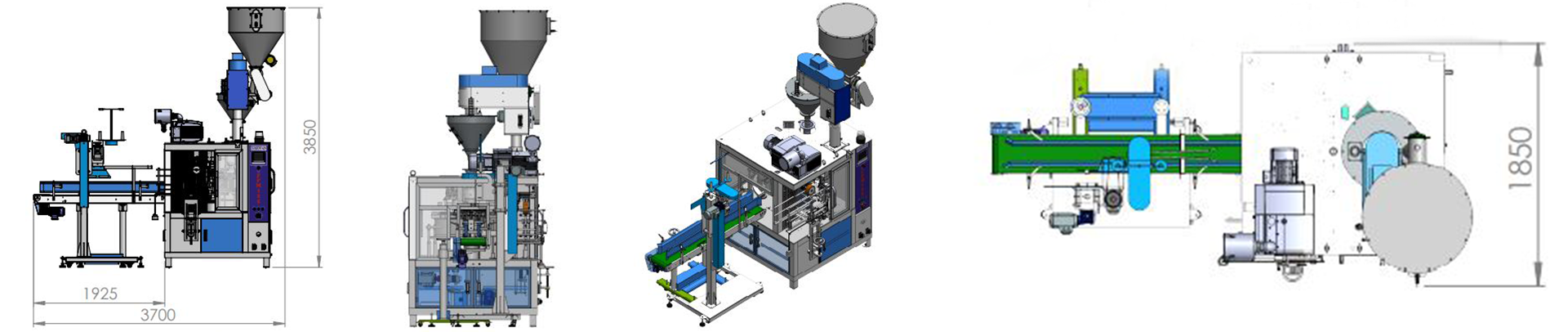

Technical Drawing

Way of Working
