SAM FPM 125 Fully Automatic Tea Filling and Packaging Line (250Gr-500Gr-1000Gr)

SAM FPM 125 Fully Automatic Tea Filling and Packing Line automatically takes and fills flat-bottomed ready-made paper packages. The filled packages move towards the bag closing machine on the band. In the bag closing machine, the excess paper is cut, the first fold is made, the last fold is made with hot glue and it comes out of the machine with the mouth closed. The dates of the packages coming out of the bag closing machine are automatically discarded and the packages are labeled by moving towards the labeling machine. Finally, the labeled packages move towards the automation shrink machine. In the shrink machine, the packages are grouped and shrinked.

  • Sensibility: The margin of error in the filling for 1kg is ± 0.5% (5 per thousand) and the working waste is below 2%.
  • Guarantee: It is guaranteed for 2 years in Türkiye and 1 year abroad.
  • Capacity: In 250 Gr packaging: 24-26 bags/min
    In 500 Gr packaging: 20-22 bags/min
    In 1000 Gr packaging: 10-12 bags/min
  • Electric: It works with 380 V, 3 Phase, 50 Hz.
  • As a facility, it consists of bag closing, hot glue, inkjet printer, labeling, clustering-shrinking machines and other parts according to demand.

Technicial Specifications

  • * Multihead scale filling system is used for tea filling.
    * All control is done from touch PLC screen.
    * There is automatic lubrication in the whole system.
    * There is a dust suction system on the filling system.
    * Metal surfaces are coated against corrosion before painting.
    * Machine paint is durable static paint.
    * All surfaces in contact with the product to be packaged are stainless.
    * Metal surfaces are nickel plated and blackened, stainless.
    * There is a speed-adjustable vibration system.
    * Electrical materials: Schneider (France)
    * Pneumatic materials: Festo (Germany)
    * Vacuum holders and suction cups: Festo (Germany)
    * Gearboxes: Yılmaz Redüktör (Türkiye)
    * PLC control system: Panasonic (Japan)

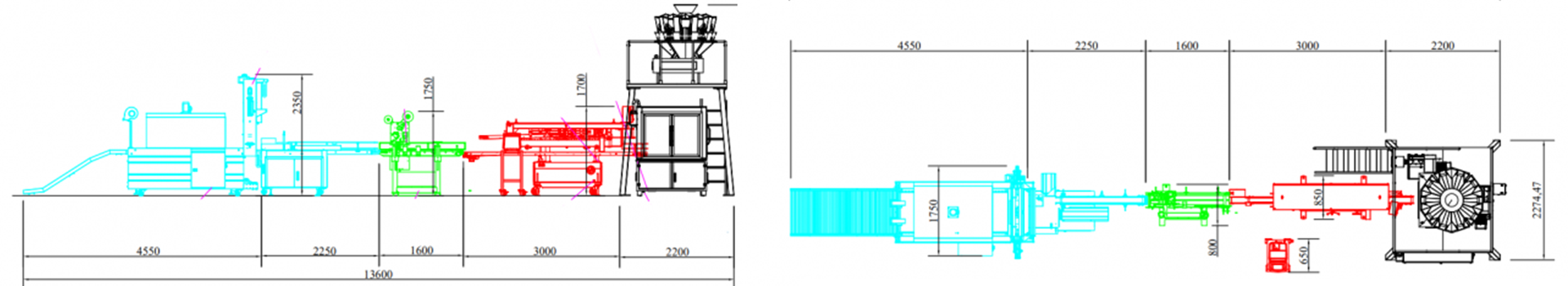

Technical Drawing

Way of Working
