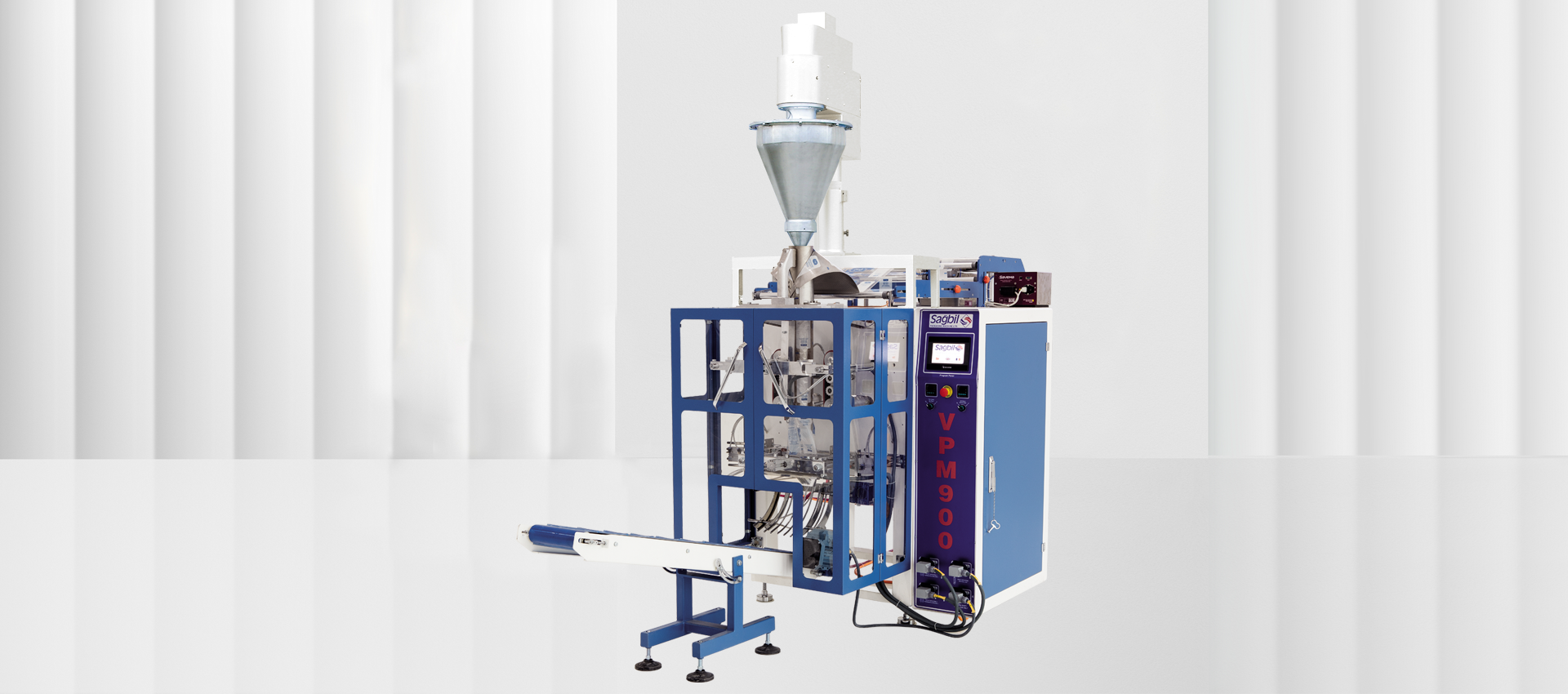

SAM VPM 900 Automatic Vertical Screw Filling and Packaging Machine

SAM VPM 900 Automatic Vertical Screw Filling and Packing Machine packs powdery products in the range of 500 Gr and 5 Kg. With the feeding made from the screw or silo, the product in the target weight is filled into the package. By giving different bag shapes to the ready-made roll packaging, the weighed product is packaged. The machine can be combined with feeding units, photocell system, and on-pack printer systems.

  • Sensibility: It has high weighing accuracy (± 0.5% per 1 Kg).
  • Guarantee: It is guaranteed for 2 years in Türkiye and 1 year abroad.
  • Capacity: It can fill up to 40 packages per minute depending on the product type.
  • Electric: It works with 380 V, 3 Phase, 50 Hz.

Technicial Specifications

  • * Filling is done with screw filling system.
    * It is used for filling powdery products.
    * Ideal for sensitive and fast packaging of powdery products such as flour, coffee, powdered cream, powdered pudding, milk powder, powdered spices.
    * The whole system is touch PLC controlled.
    * There is a 200 Kg stainless silo on the machine.
    * Fills in 2- or 3-layer laminated packages that can be adhered with heat.
    * It has pillow type, gusseted pillow type, sitting bag preference.
    * Metal surfaces are coated against corrosion.
    * Machine paint is durable static paint.
    * Metal surfaces are nickel plated and blackened, stainless.
    * All surfaces in contact with the product to be packaged are stainless.
    * Electrical materials: Schneider (France)
    * Pneumatic materials: Festo (Germany)
    * Gearboxes: Yılmaz Redüktör (Türkiye)
    * PLC control system: Panasonic (Japan)
Get a Quote

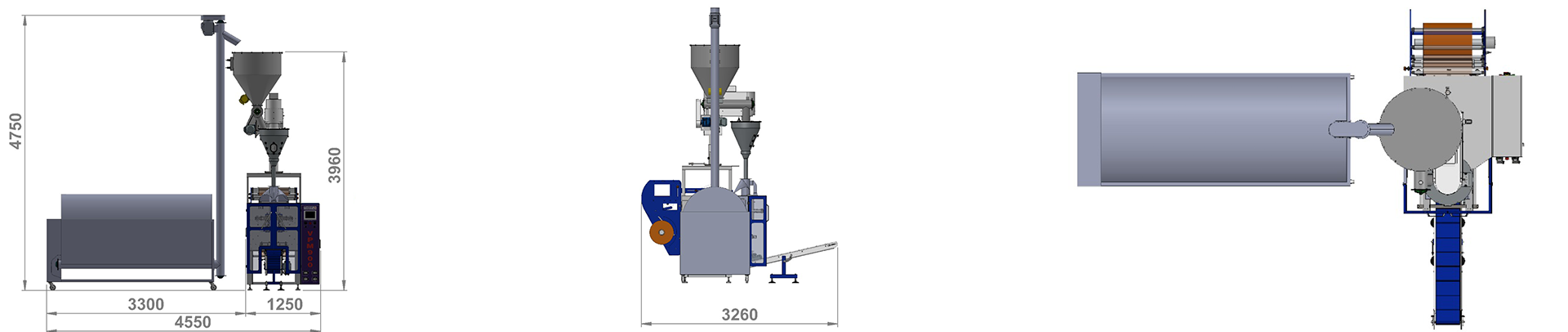

Technical Drawing

Way of Working
